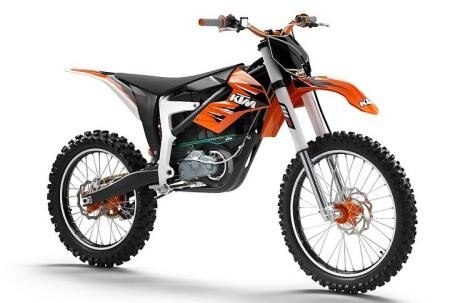

KTM Freeride. Le foto e le caratteristiche tecniche ufficiali

Arrivano i primi dati tecnici e le foto ufficiali delle KTM Freeride, le moto elettriche della Casa austriaca. I due modelli saranno presentati in anteprima, domani al Tokyo Motorcycle Show. La scheda tecnica riporta un peso di 90 kg e una potenza di 22 kW. Il gruppo di batterie agli ioni di litio ha una capacità energetica di 2,5 kWh e si ricarica in un'ora e mezza. Secondo la KTM questa moto dovrebbe avere le stesse prestazioni di un modello con motore termico da 125 cc.



Technical data information

Vehicle concept
Frame Lightweight Delta Box frame with forged aluminium components
Self supporting tail in monocoque design
Suspension Up-side-down fork and shock absorber with variable setting
Progressive damping system
Tires 21" Trial Enduro tires
Brake system Hydraulic brake system with hand operation for the front and rear wheel
Radial brake system with recuperation support through brake energy
Engine case Combined drive casing in light metal design and all inclusive system integration
Drive motor Permanent energized synchronous motor in shrunk-on-disc construction
Engine management Modular high performance power module with integrated system and "Drive by Wire" security management
Transmission Direct drive without clutch with gear transmission and chain
Traction battery Plug in battery in li-ion (lithium-ion) technology

Technical data
Motor effective horsepower 7.4 (10) / 6000 kW (hp) / Umin-1
Motor peak performance 22 (30) / 6000 kW (hp) / Umin-1
Motor torque 43 / 500 Nm / Umin-1
Maximum motor speed 6600 Umin-1
Maximum battery voltage 300 V
Maximum energy content 2.5 kWh
Speed 70 Km/h
Overall multiplication factor
(Primary / secondary level) 10.5 (2.4 / 4.5)
Charging time 1.5 h
Total vehicle weight
Including removable traction battery 90 kg
